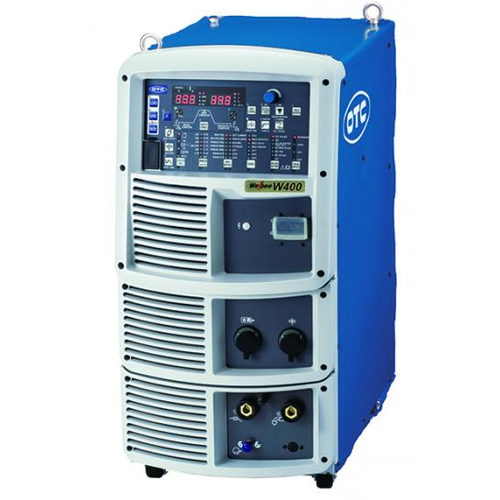

WB-W400-AC-MIG

WB-W400 AC-MIG

Nuestra fuente de energía de soldadura basada en inversor dual 400A ofrece soldadura AC-MIG con capacidad WavePulse y AC WavePulse. Este Welbee W400 es ideal para aplicaciones que requieren un control preciso de la entrada de calor al sustrato en equilibrio con la entrada de calor al alambre de soldadura.

[btn text=”Ficha técnica” tcolor=#FFF bcolor=#004098 thovercolor=#FFF link=”https://daihen.mx/wp-content/uploads/2020/06/Ficha-tecnica-WB-W400.pdf” target=”_blank”]

Categories: ,

Description

Nuestra fuente de energía de soldadura basada en inversor dual 400A ofrece soldadura AC-MIG con capacidad WavePulse y AC WavePulse. Este Welbee W400 es ideal para aplicaciones que requieren un control preciso de la entrada de calor al sustrato en equilibrio con la entrada de calor al alambre de soldadura.

  • – Soporte de soldadura mejorado para aluminio de placa delgada a través del modo de soldadura de CA mejorado
  • – La función Synchro-MIG permite una soldadura optimizada de diferentes espesores de placa
  • – Los modos AC Pulse y AC WavePulse proporcionan hermosas soldaduras con hollín reducido
  • – Modos de soldadura estándar de aluminio y acero inoxidable
  • – Inversor digital de 80 kHz
  • – Controle la corriente de soldadura a través de un interruptor de antorcha
  • – La función de llenado del cráter evita la oxidación del cráter
  • – Primario trifásico (460 voltios)
  • – Almacenamiento de memoria de 100 trabajos para uso semiautomático

Especificaciones

Especificación

Valor
Numero de fases 3
Frecuencia nominal 50/60 Hz
Voltaje de entrada nominal 460VAC +/- 10%
Potencia de entrada nominal 19.4kVA (14.8kW)
Corriente de entrada nominal 24.4A
Corriente de salida nominal 400A
Rango de corriente de salida nominal 30A ~ 400A
Rango de voltaje de salida nominal 12V ~ 36V
Tensión máxima sin carga 92V / 101V
Ciclo de trabajo nominal 60%
Dimensiones (ancho x profundidad x altura) 15.6 “x 28” x 32.9 “(sin cáncamos)
Masa 165 libras. (75kg)
